USN/USMC Mobile Radio Installations

NOTE - This is just a summary from Navy equipment catalogs and is not my primary area of interest.
There is a ton of detailed info on the web about various models, production numbers, etc.
G503 is probably the place to ask questions, find out more, etc.
https://forums.g503.com/viewforum.php?f=84

Mobile Communications

Some info and photo links (thanks to Rich WA6KNW)

Navy Equipment Designation (WW II)

Vehicle Info

1949-50 USN/USMC Radio Jeeps

Waterproof Navy Radio Jeeps

V-35/U Radio Jeeps

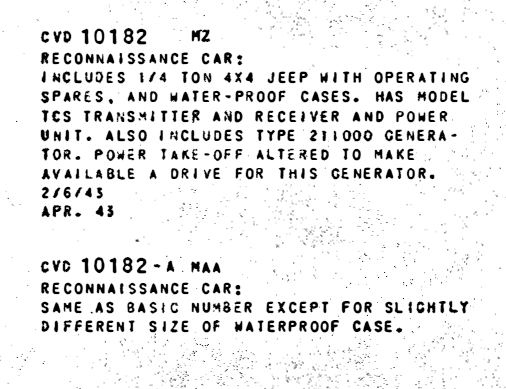

10182   MZ
10182-A   MAA
10182-B   MZ-2
10182-C   MZ-3
10182-D   AN/MRC-12, etc.

10465   ?
10466   ?


MZ


1.5 to 12.0 Mc AM, 25 watts CW, 15 watts voice, 12 or 24 volts d-c. Used extensively on patrol and landing craft, reconnaissance vehicles, and for similar purposes. Switch selection of any one of four crystal controlled frequencies in each of the three bands.

MZ-2

 SCR-608-() (MZ-2). FM, 27-39MHz.
2 each BC-683-( ), Receiver, Vehicular, 27-38.9MHz, FM, 10 preset channels or continuous tunable, IF 2.65MHz. Requires 12/24 and 285 VDC.
BC-684-( ), Transmitter, vehicular, 27-38.9MHz, FM, 10 crystal controlled channels, 8 tubes. Requires 12/24 and 600 VDC.

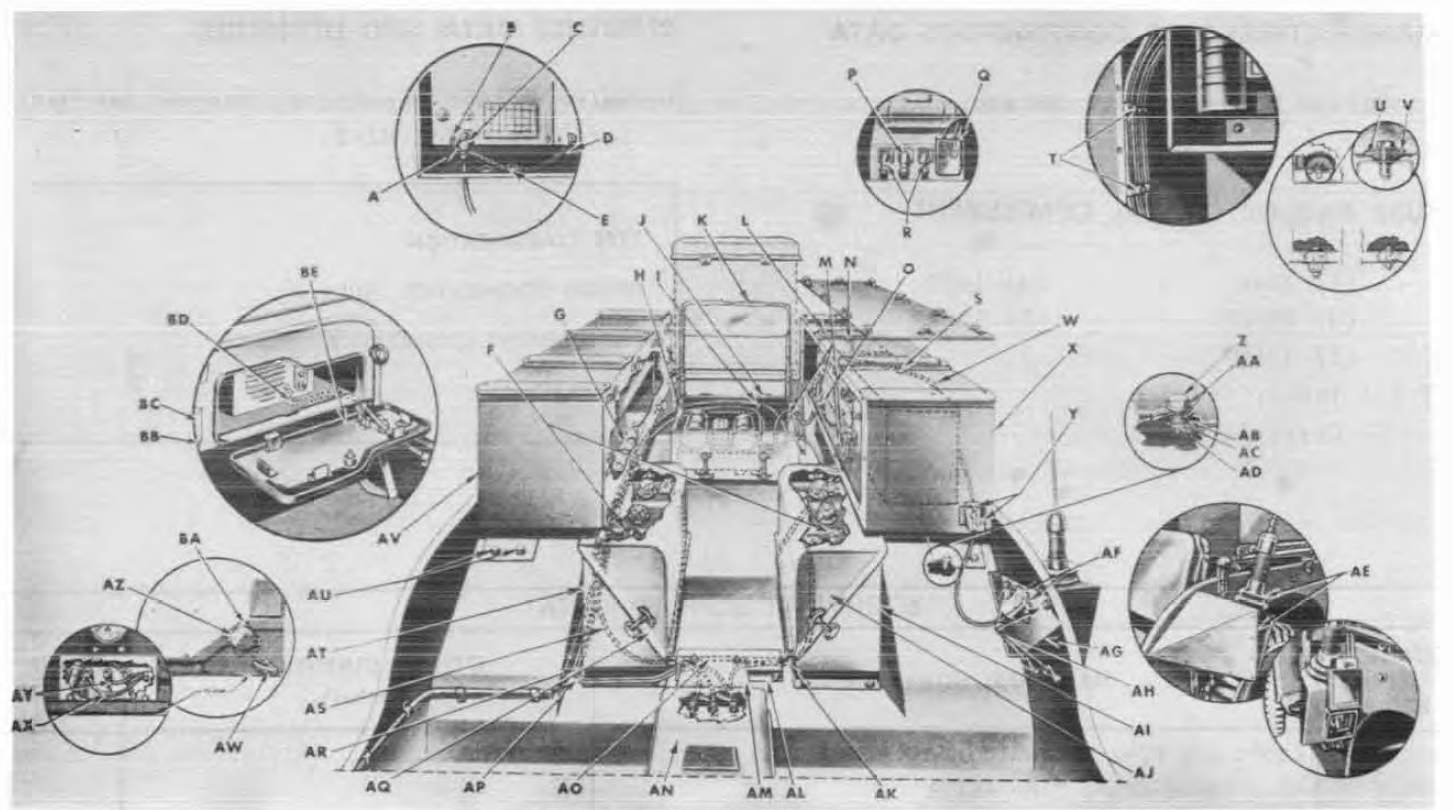

MZ-3

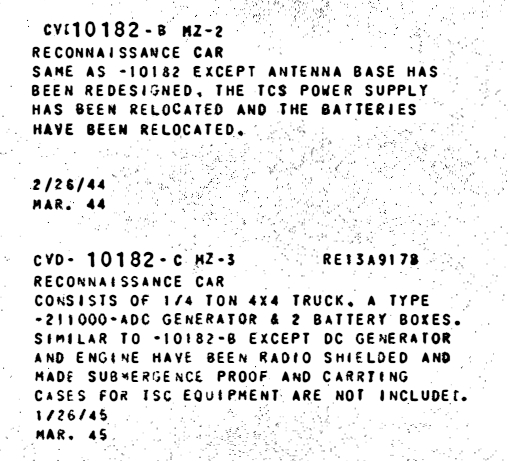

 Submergence Proof

MZ Antenna Info

Antenna Assembly 66086
66085 mast plus 61450 base

Antenna Assembly 66118
66085 mast plus MP-57  base

Antenna Assembly 66118-A
two 66085 masts plus 61466A base

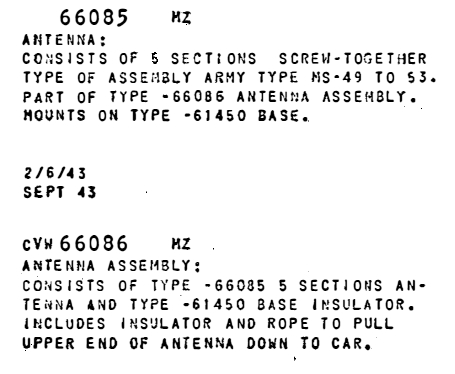

Mast 66085
consists of 5 sections below

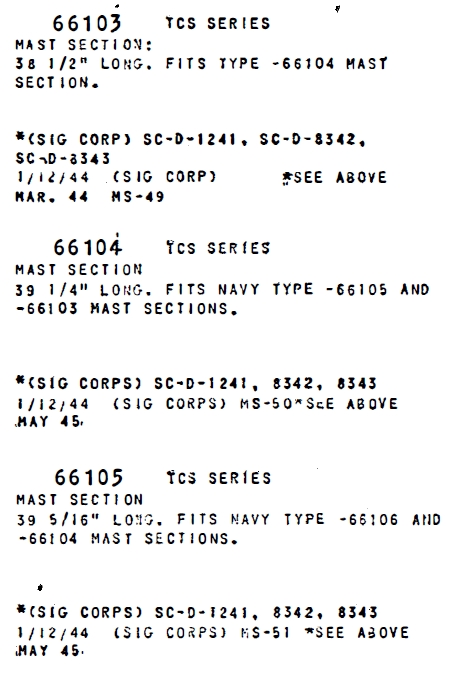

Mast Sections
Navy type/Signal Corps type
  66103   MS-49
  66104   MS-50

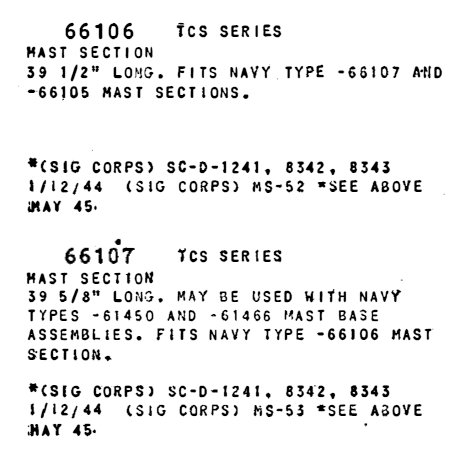

  66105   MS-51
  66106   MS-52
  66107   MS-53

Base
Navy type/Signal Corps type

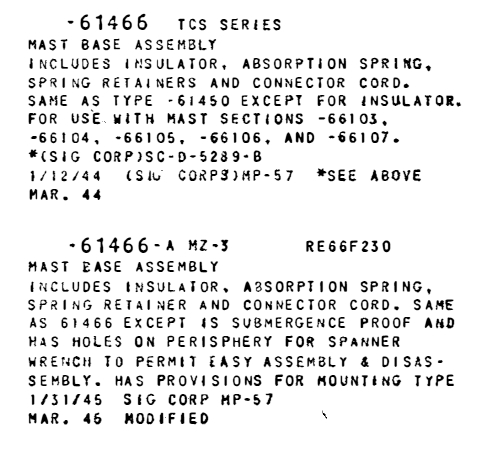

  61450   MP-37
  61466   MP-57
  61466-A   MP-57 modified

Canvas Cover
Navy type/Signal Corps type
  10183   BG-56-A
  10184   BG-57-A




MAL

 TCS HF plus RT-19/ARC-4 (MAH) 140 to 144 Mc AM, 12 or 24 volts d-c. VHF transmitter and a VHF receiver mounted on a single chassis. Both the transmitter and receiver may be pre-tuned for operation on any four crystal controlled frequencies in the 140 to 144 Mc band. One of the four frequencies is intended for plane-to-plane communication. The remaining frequencies are intended for plane-to-ground communication.  Description

MAO

 SCR-510 in Jeep Type CVD-10182.

MAQ

 SCR-499 & SCR-542 in M3 Half Track & PE-95 Generator in Trailer

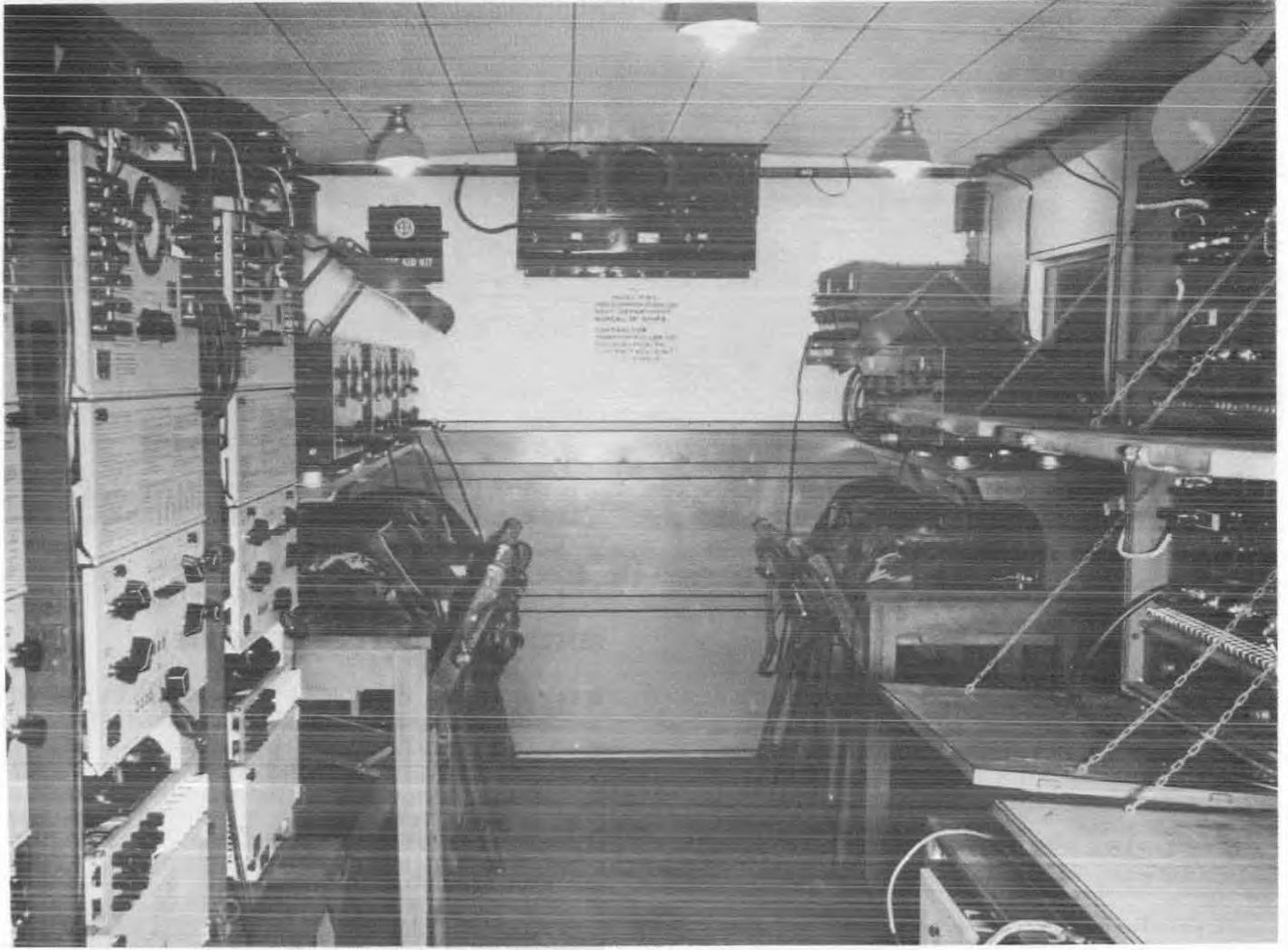

MBL


MBS

 mbs-21.jpg (695788 bytes)    Mobile Radio Transmitting and Receiving Equipment MBS is a-m (cw, mcw, voice) equipment, operating as an air command center on shore for m-f, h-f, and v-h-f two-way communication with aircraft. It is used for fighter air defense, and general air-to-ground communications.
   A 2-1/2 ton truck contains one Radio Transmitting and Receiving Equipment TCS (series), one Radio Transmitting Equipment TCK-4, three Radio Receiving Equipments RCH, Radio Receiver BC-639, and Radio Transmitter BC-640.
A trailer houses a gasoline-engine-driven generator set (PE-99, or equal).
Provision is made for remote control of the equipment.

AN/ Equipment Designation (Post-WW II)

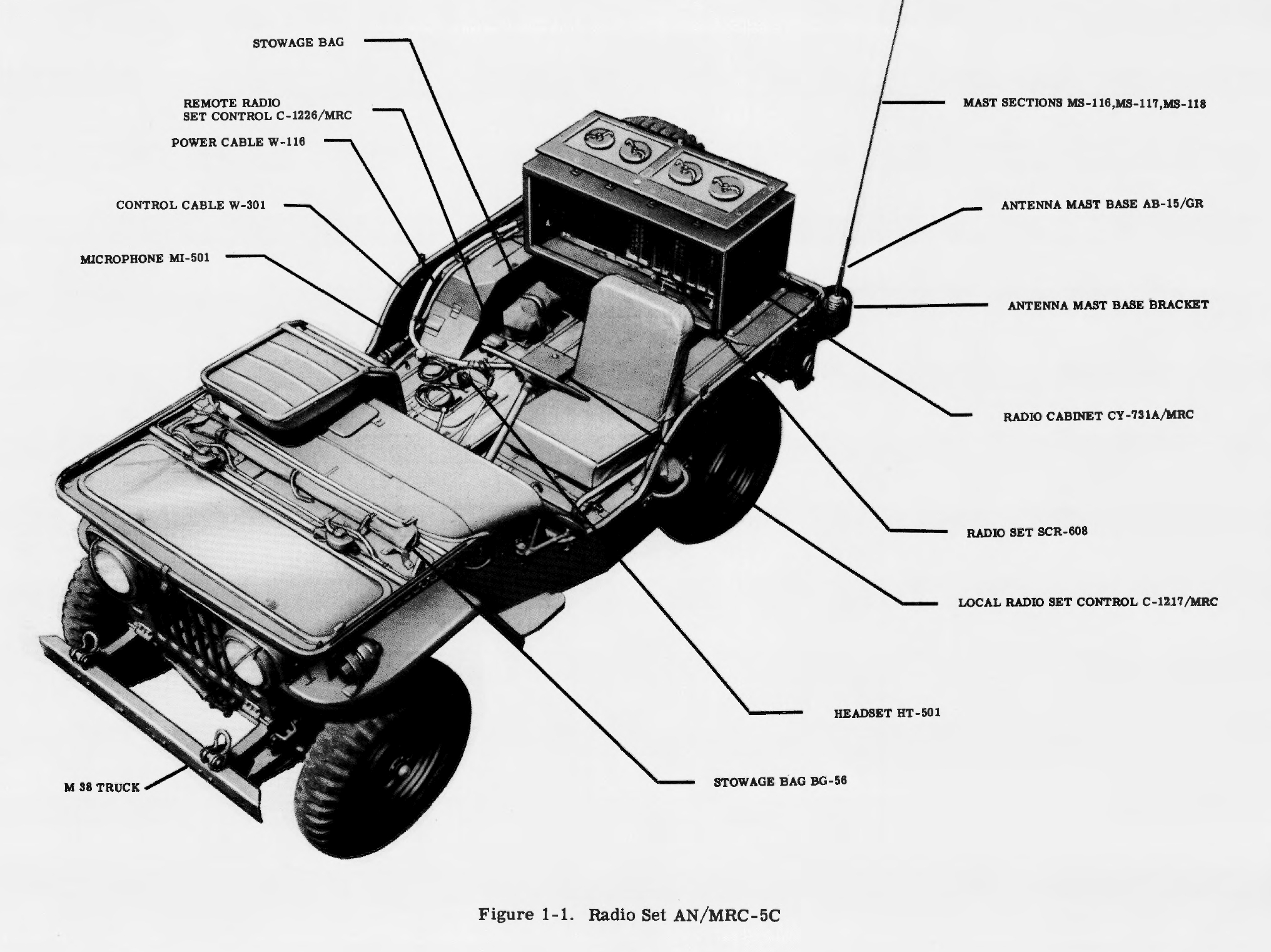

AN/MRC-5

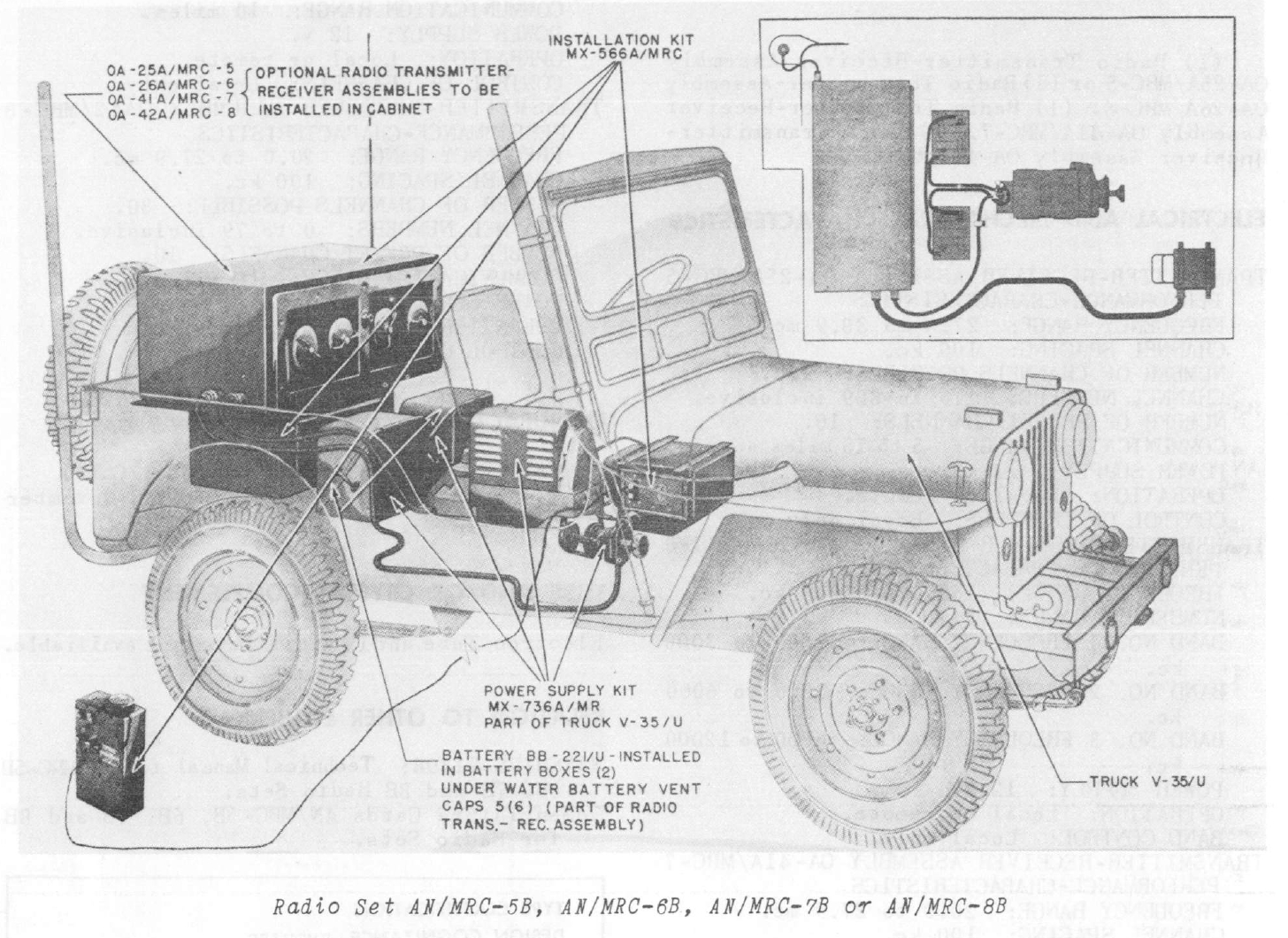

AN/MRC-7

VHF SCR-608


AN/MRC-6

 HF TCS mrc6c-51.jpg (1037591 bytes) mrc6-11.jpg (515917 bytes)

AN/MRC-12

 225-400 mc

(10182-D truck)

 uses RDR receiver and MAR transceiver ==

AN/MRC-13

 225-400 mc

MRC-13 - 10182-D truck
MRC-13A - V-35/U truck
MRC-13B - M38A1 truck

 uses MAR transceiver ==

I think this is MAR/RDR Equipment in a USMC Jeep - any additional info is appreciated - send me e-mail
teg-2111-ss-033.jpg (5152172 bytes) teg-2111-ss-034.jpg (5236408 bytes) teg-2111-ss-035.jpg (5119024 bytes) teg-2111-ss-036.jpg (5272283 bytes)

AN/MRC-16

 HF and VHF - AM & FM three shelters
S-1/FM
S-2/MRN-3
S-3/TPS-1		 mrc16-21.jpg (692713 bytes)

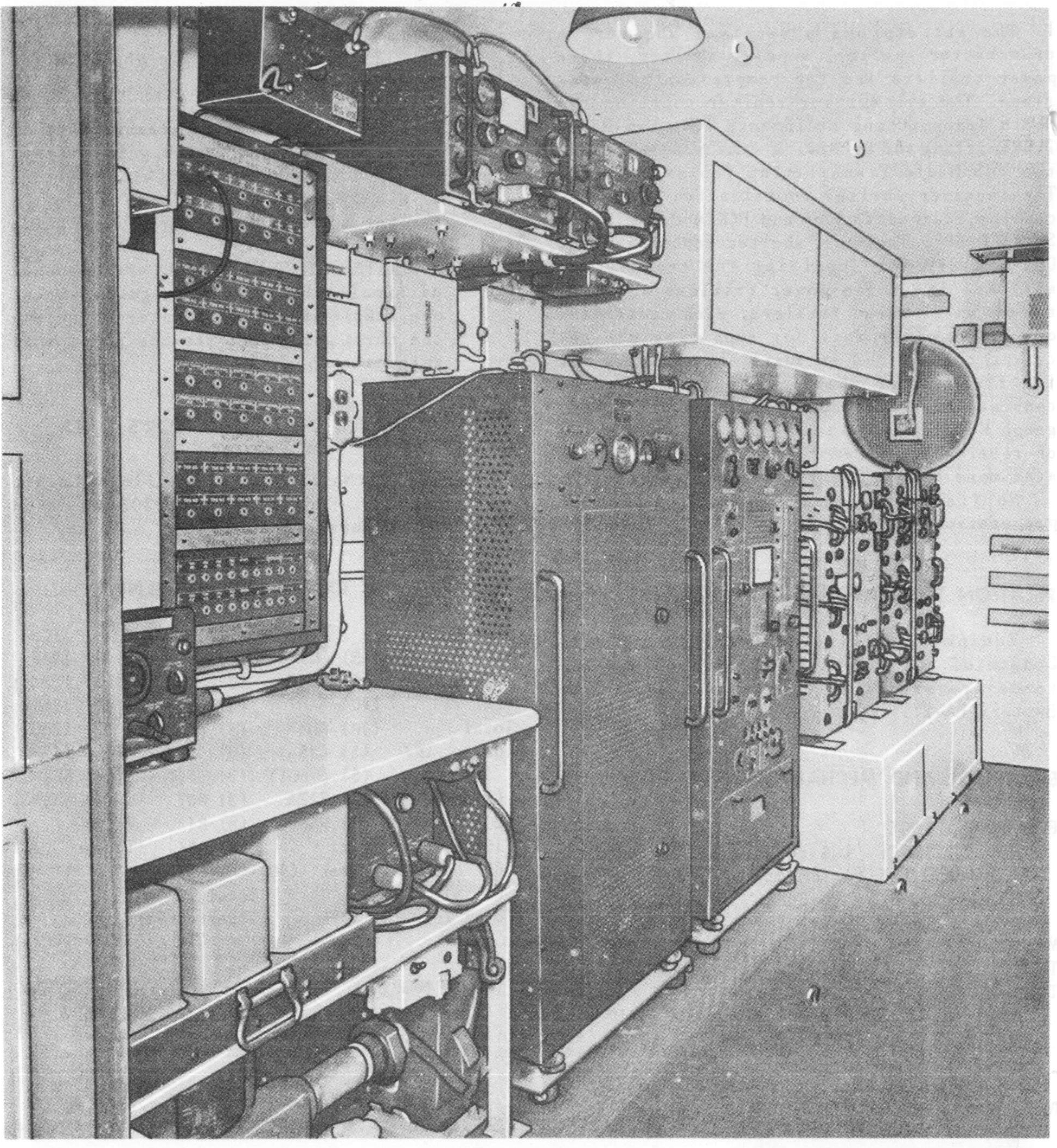

AN/MRC-18

HF and VHF - AM & FM

   TCK
   TDQ
   TCS
   SCR-608

Receivers
   RAO
   RCK
   TCS
   SCR-608

AN/MRC-19

 HF and VHF HF - SCR-193
VHF - SCR-542		 ==

AN/MRC-19B

 HF and VHF HF - BC-191 and BC-312
VHF SCR-542		 Truck V-35/U

AN/MRC-22



TCS
AN/ARC-1
AN/ARC-27

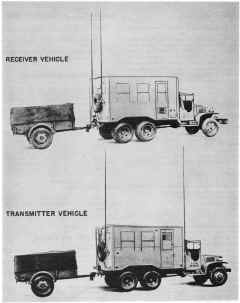

AN/MRC-23

   TDE-1
   AN/URT-7
   TED-1

Transmitter-Receiver TCS-1

Receiver
   RCH
   AN/FRR-27
   AN/URR-13A

 ==

AN/MRC-24

 HF, VHF, and UHF TCK-4
TCS-12
TDQ

Transmitter-Receiver MAR

RCK
MAR
RCH

 2-1/2 ton 6x6 truck

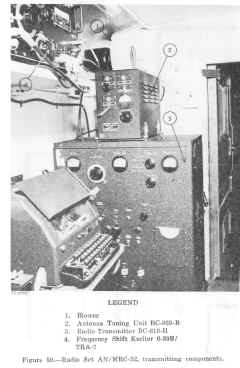

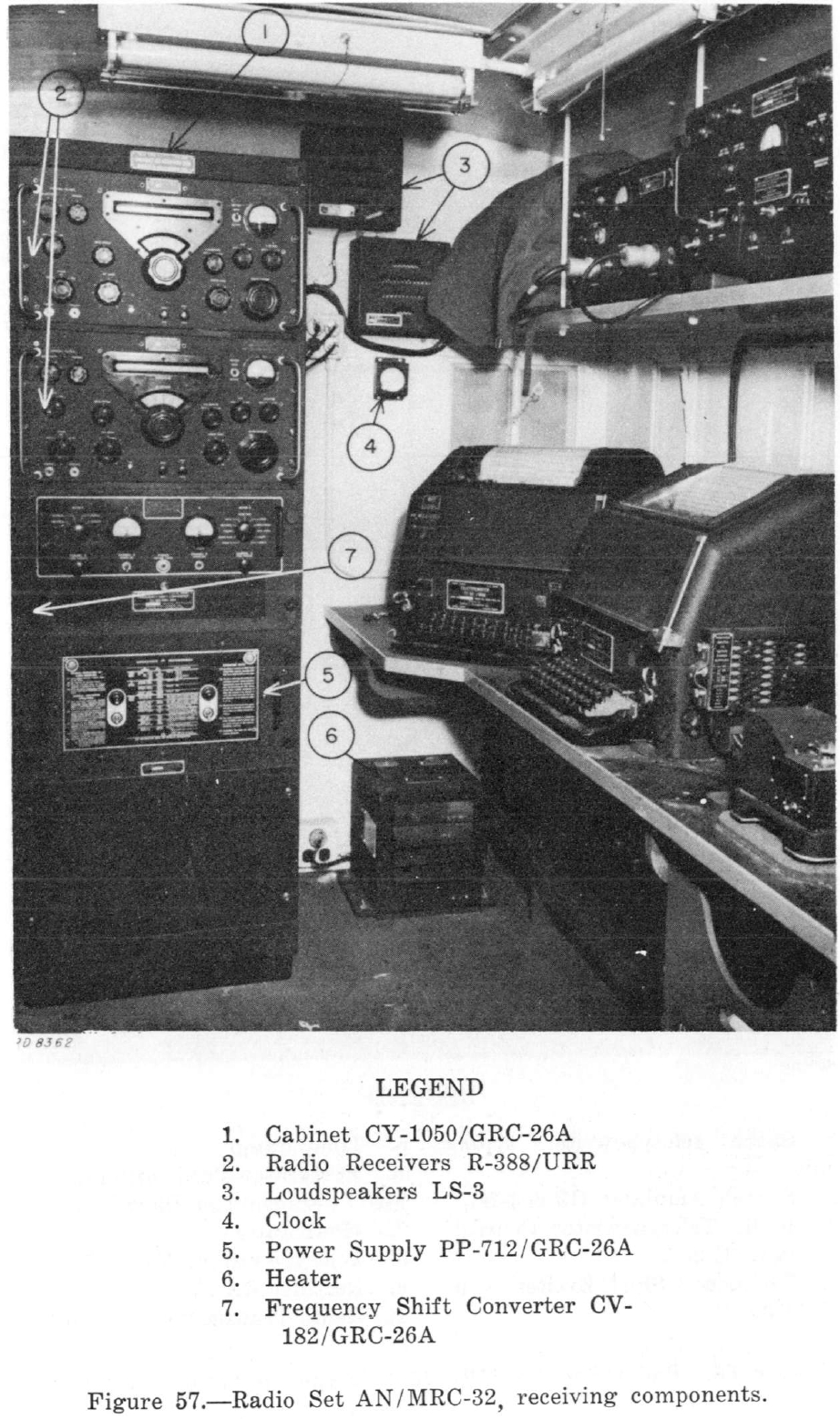

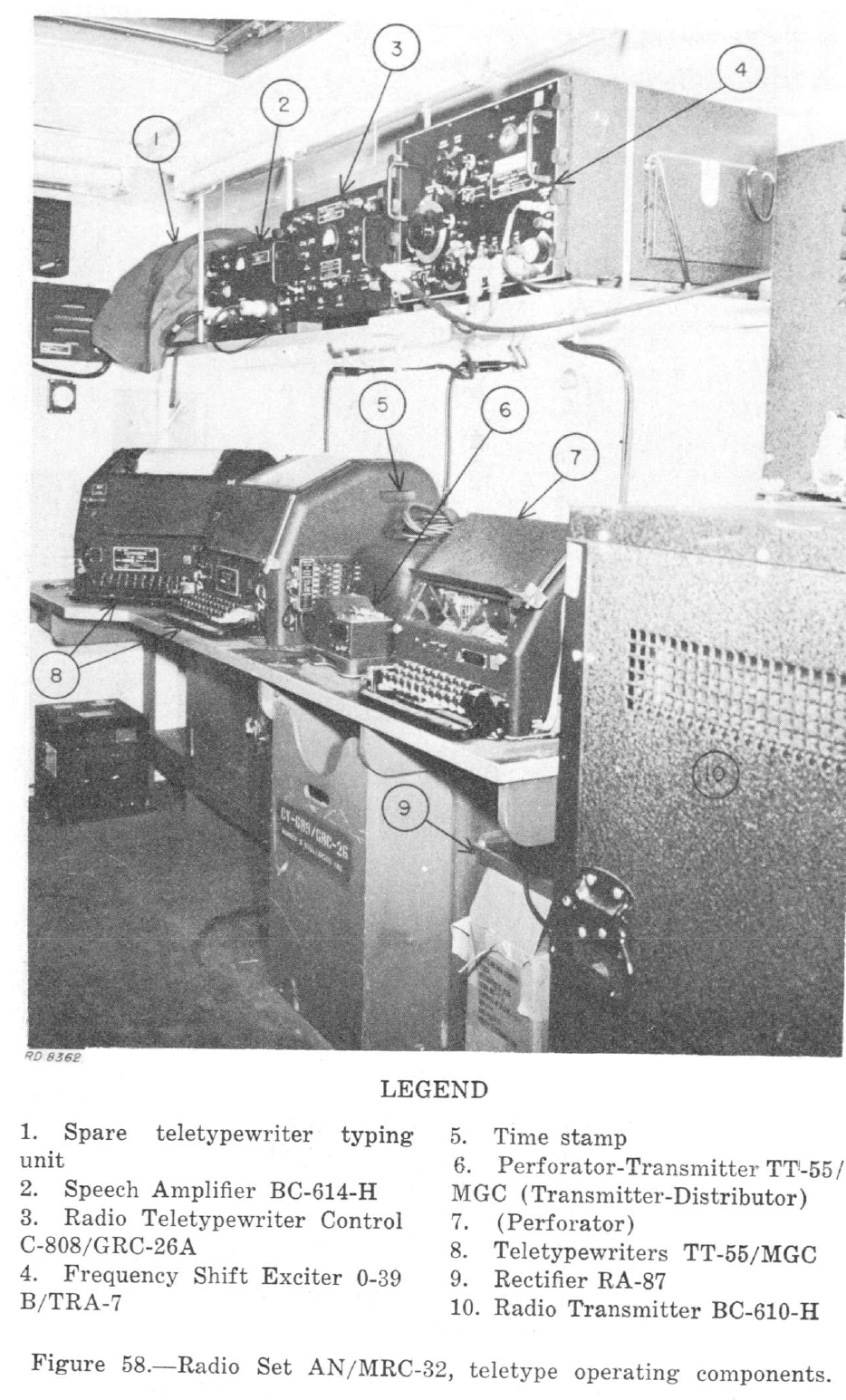

AN/MRC-32

(like AN/GRC-26A)

HF Teletype



AN/MRC-35

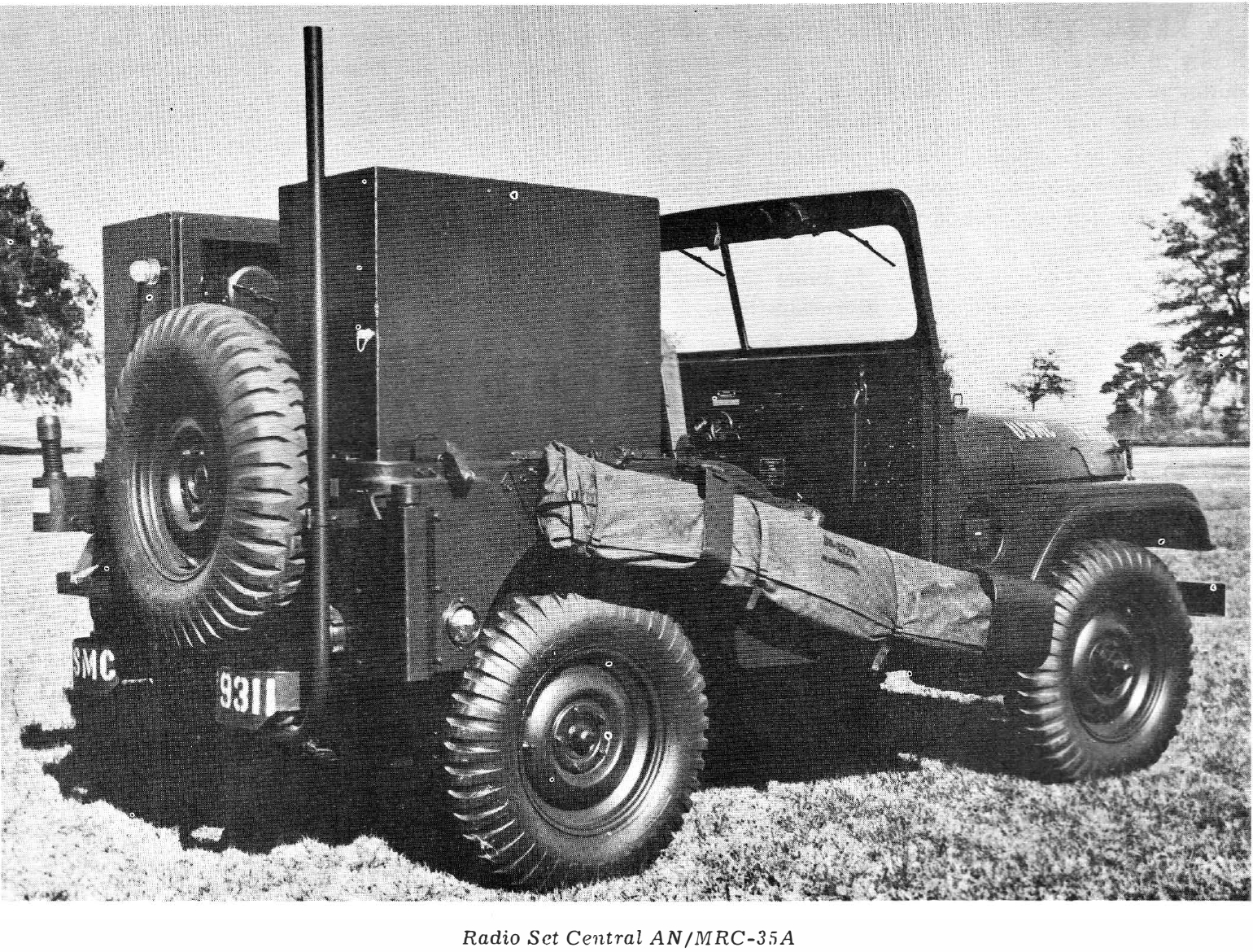

AN/MRC-35A

 LF, HF, and UHF
  AN/ART-13 and BC-348-Q
  AN/ARC-27

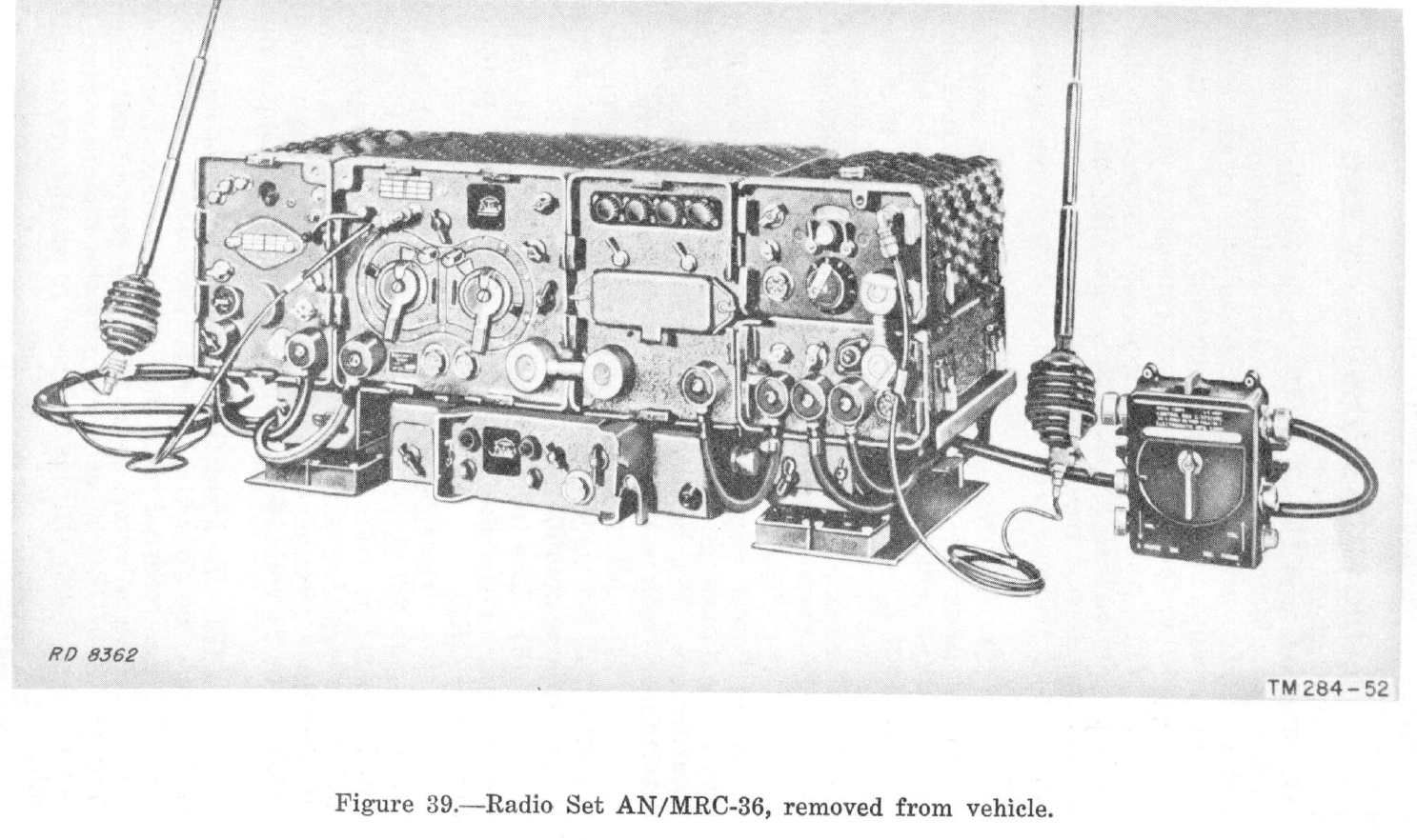

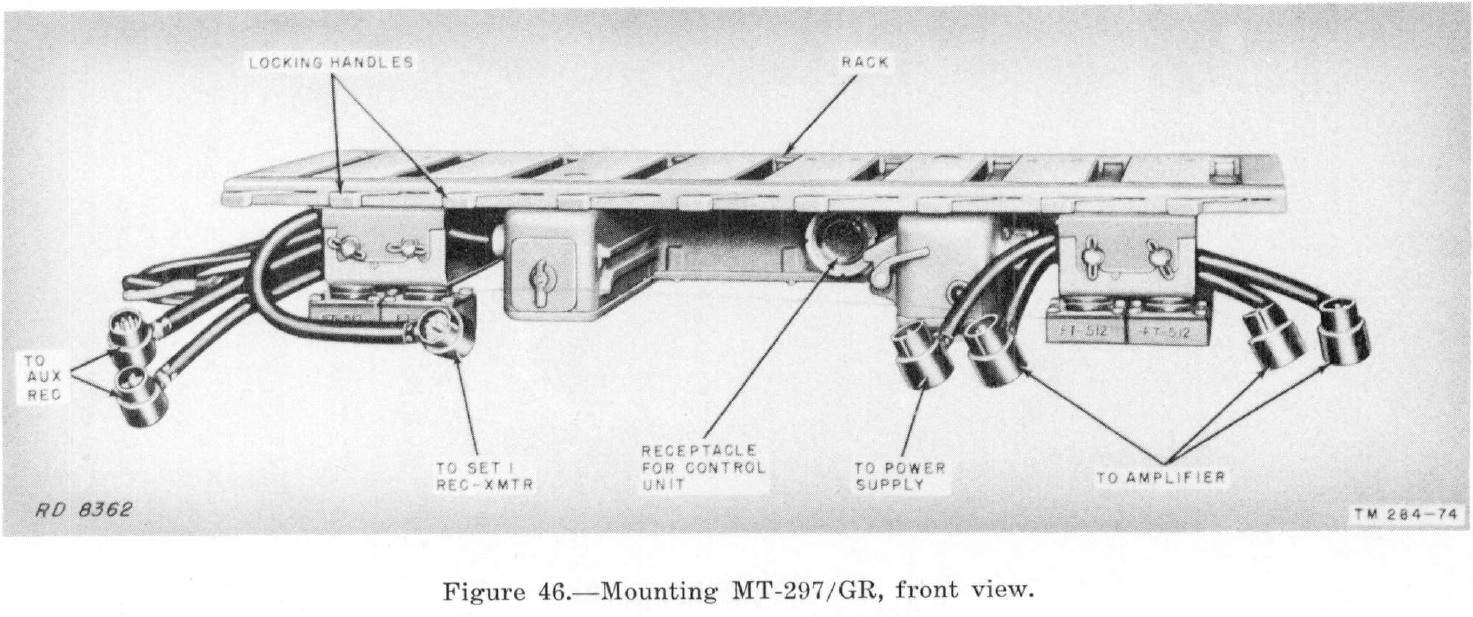

AN/MRC-36
AN/MRC-37
AN/MRC-38

 VHF FM

AN/GRC-3
AN/GRC-5
AN/GRC-7




AN/MRC-40

 UHF T-217/GR and R-278B/GR ==

AN/MRC-47A

 HF and UHF TCS, TCK, T-217/GR ==

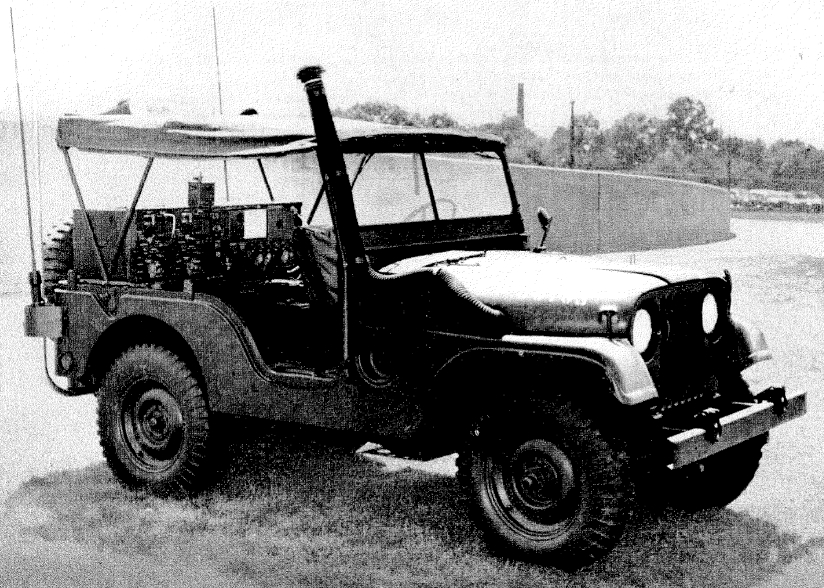

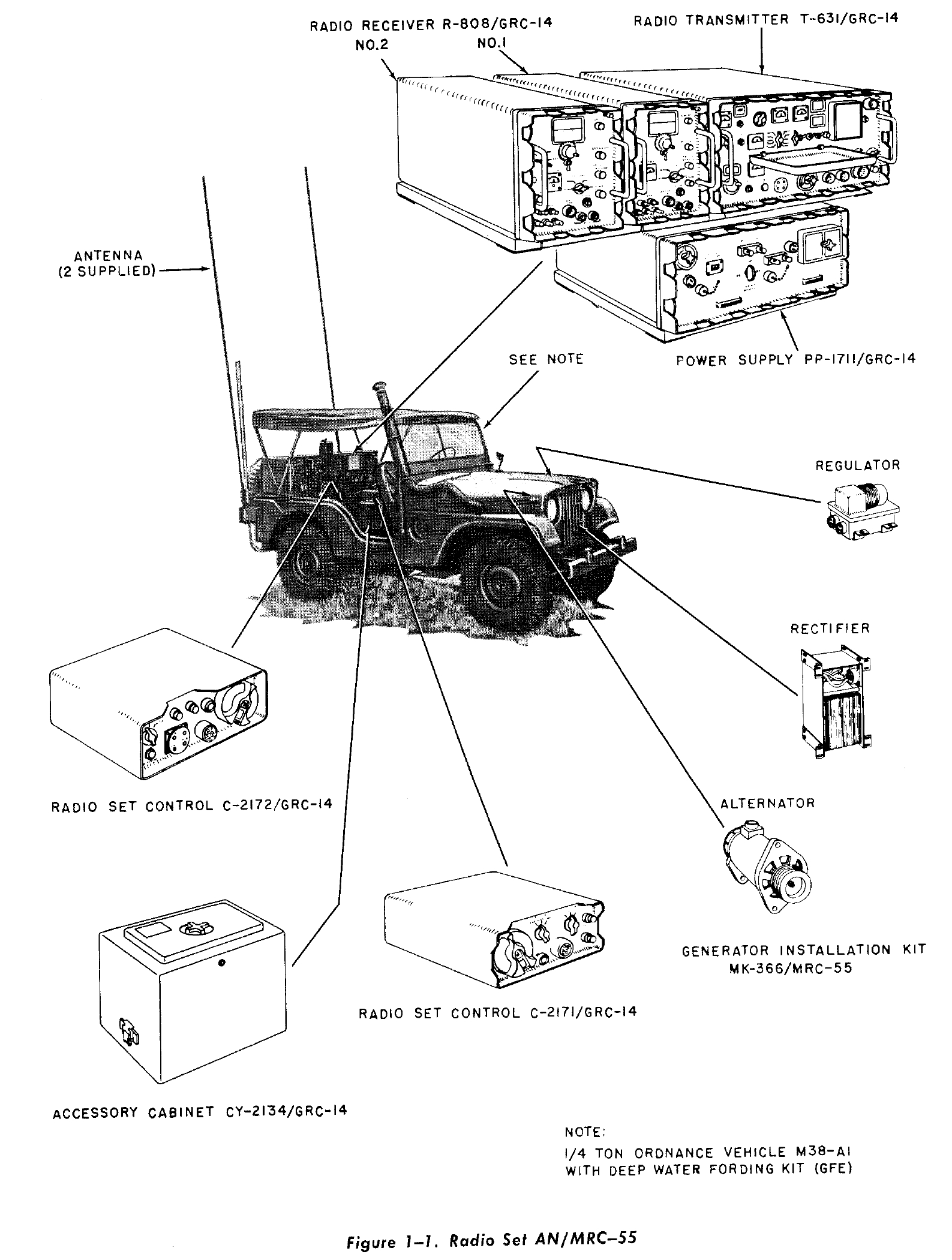

AN/MRC-55

 HF

AN/GRC-14

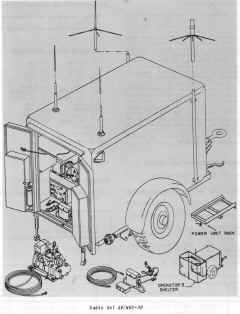

AN/MRC-56

HF, VHF, and UHF

TCS
ARC-1
ARC-27
AN/VRC-32






 Ed KG6UTS says - " The MRC-56 I worked with had the VRC-33 and PRC-33s set up on 40.58 to talk with fire and crash boats as the Navy still had seaplanes. TCS in one MRC had been removed and replaced by an ARC-2.  There was an ARC-27 and ARC-1 to comm with aircraft and a VRC-51 on 140.58 for base (North Island) police. The trailer was deployed for emergency landings etc. "

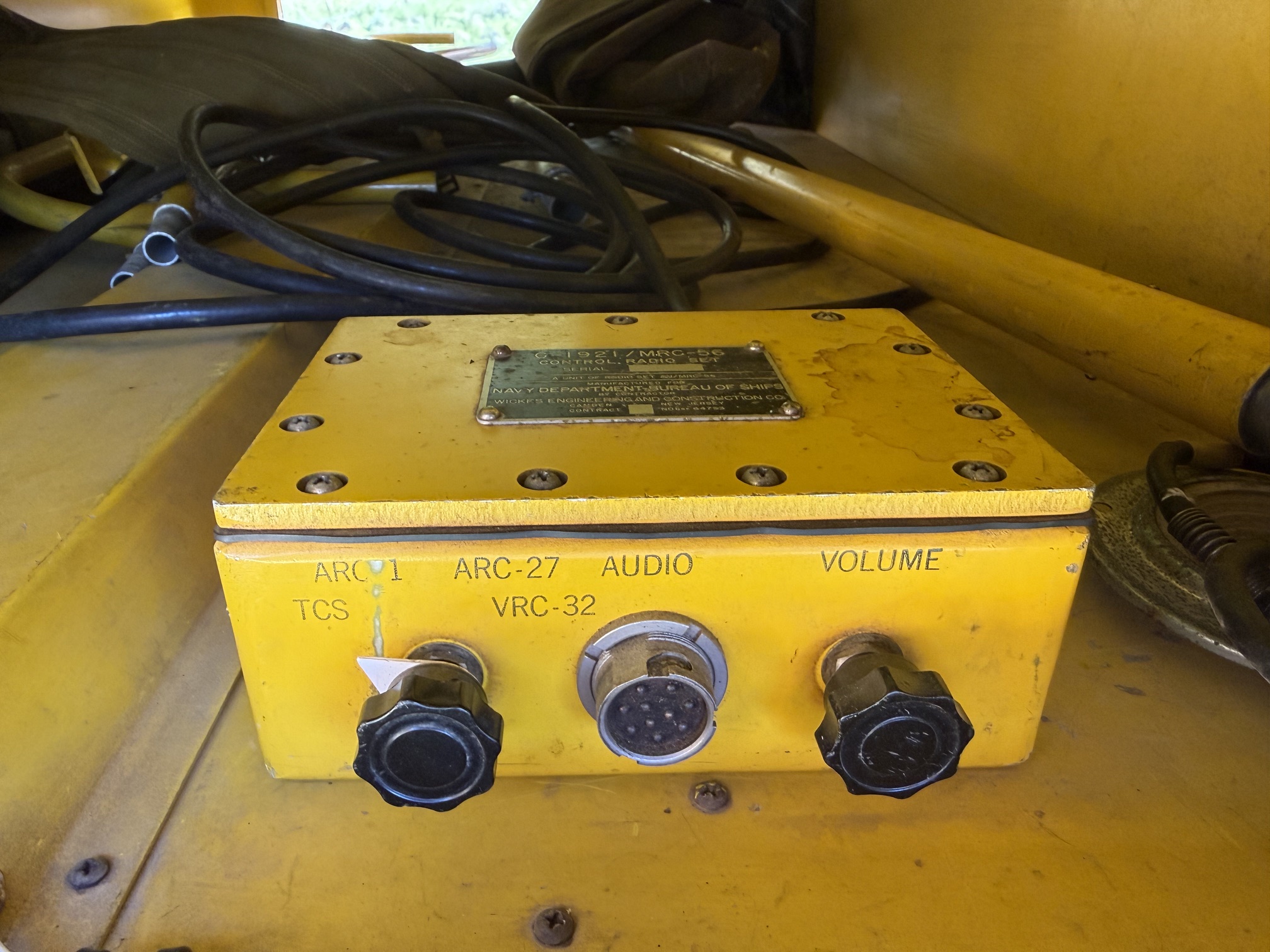

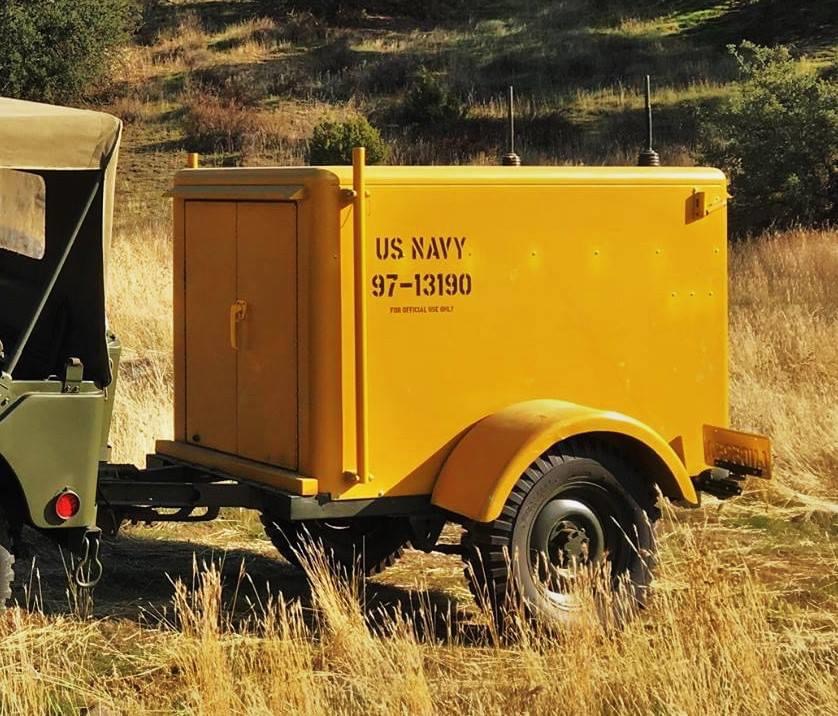

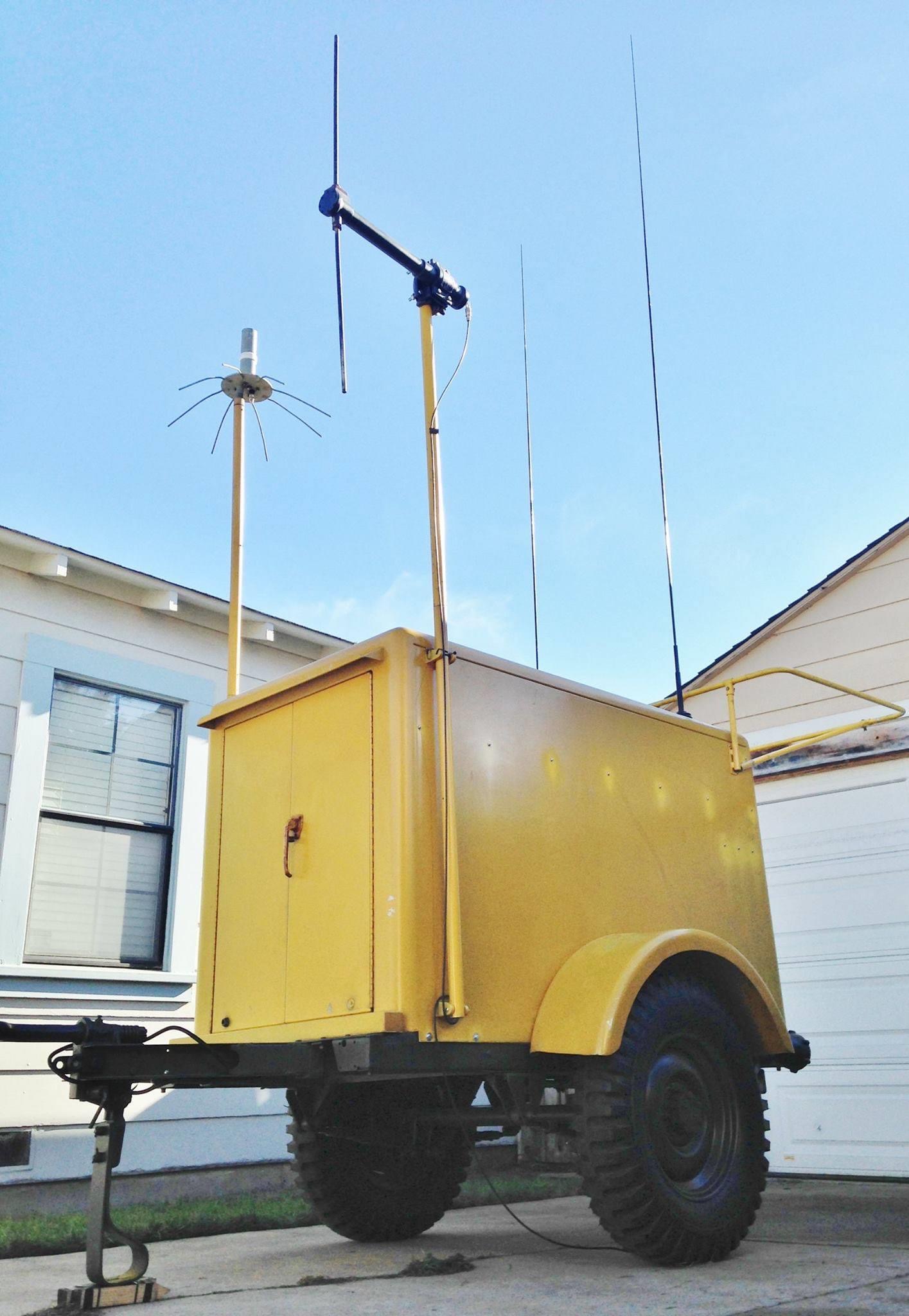

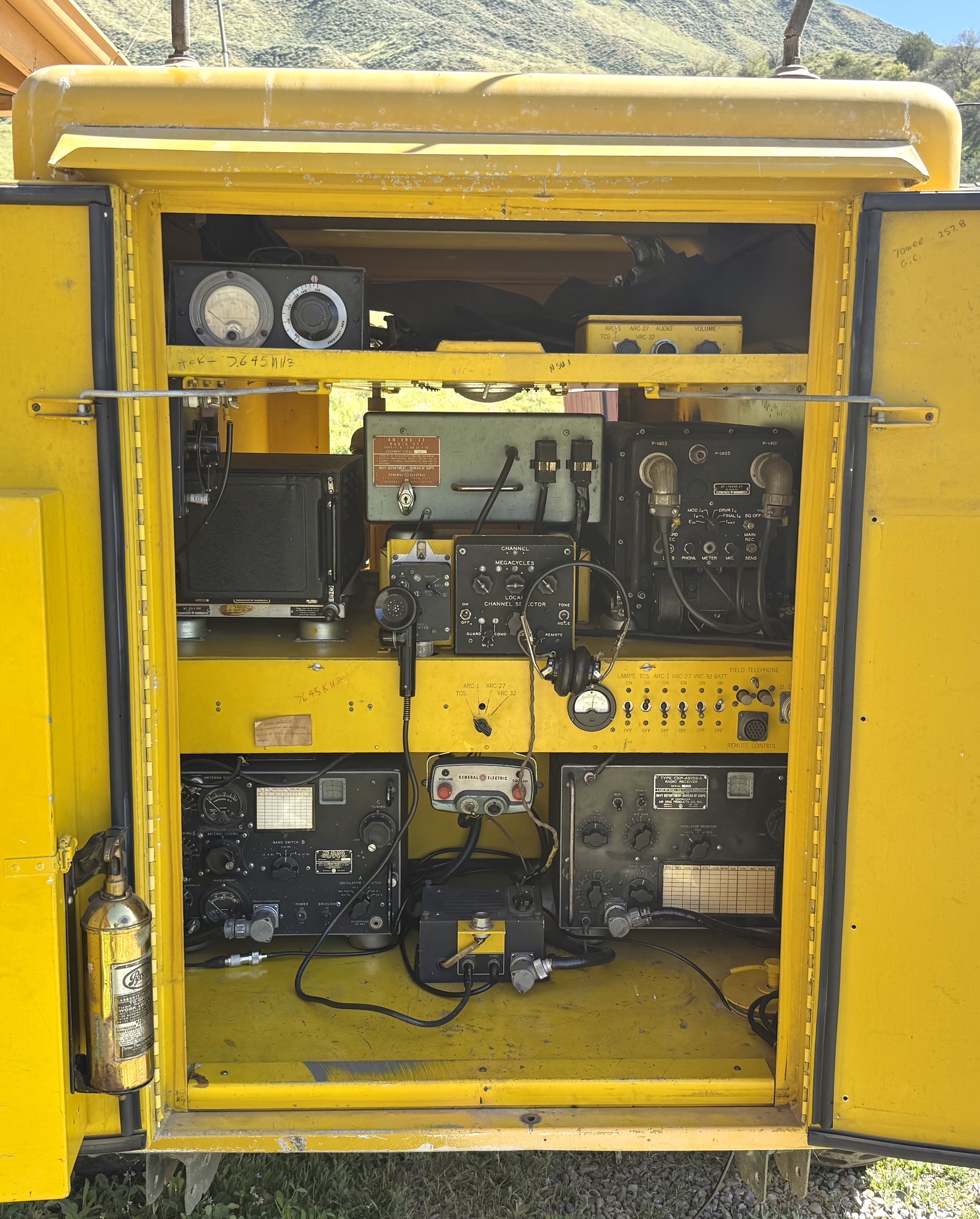

BELOW - Andy KD6TKX restored this MRC-56  - " Found on a ranch in Madera Ca where it had been since the 70’s. The radio installation was complete except the ARC-1 and ARC-27. The antennas, masts, awning frame etc were still stowed in the top section.
The markings were patterned after the originals which were discernible in the paint after careful cleaning."

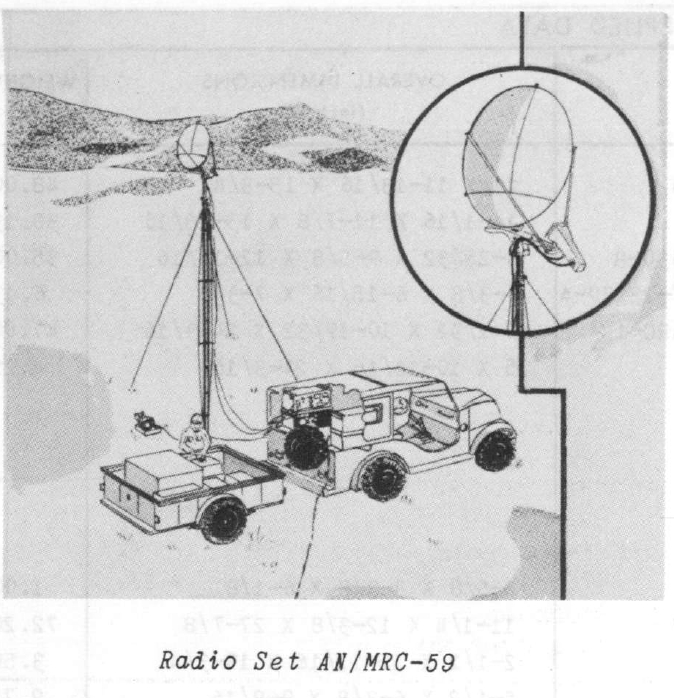

AN/MRC-59


AN/GRC-37

 ==

AN/MRC-60


AN/TRC-27

 ==

AN/MRC-81

 HF, VHF, UHF AN/ARC-1
AN/ARC-2
AN/ARC-27
AN/VRC-33		 ==

AN/MRC-83

 HF

AN/TRC-75


AN/MRC-84



HF AN/GRC-9 ==

AN/MRC-87

 HF AN/TRC-75

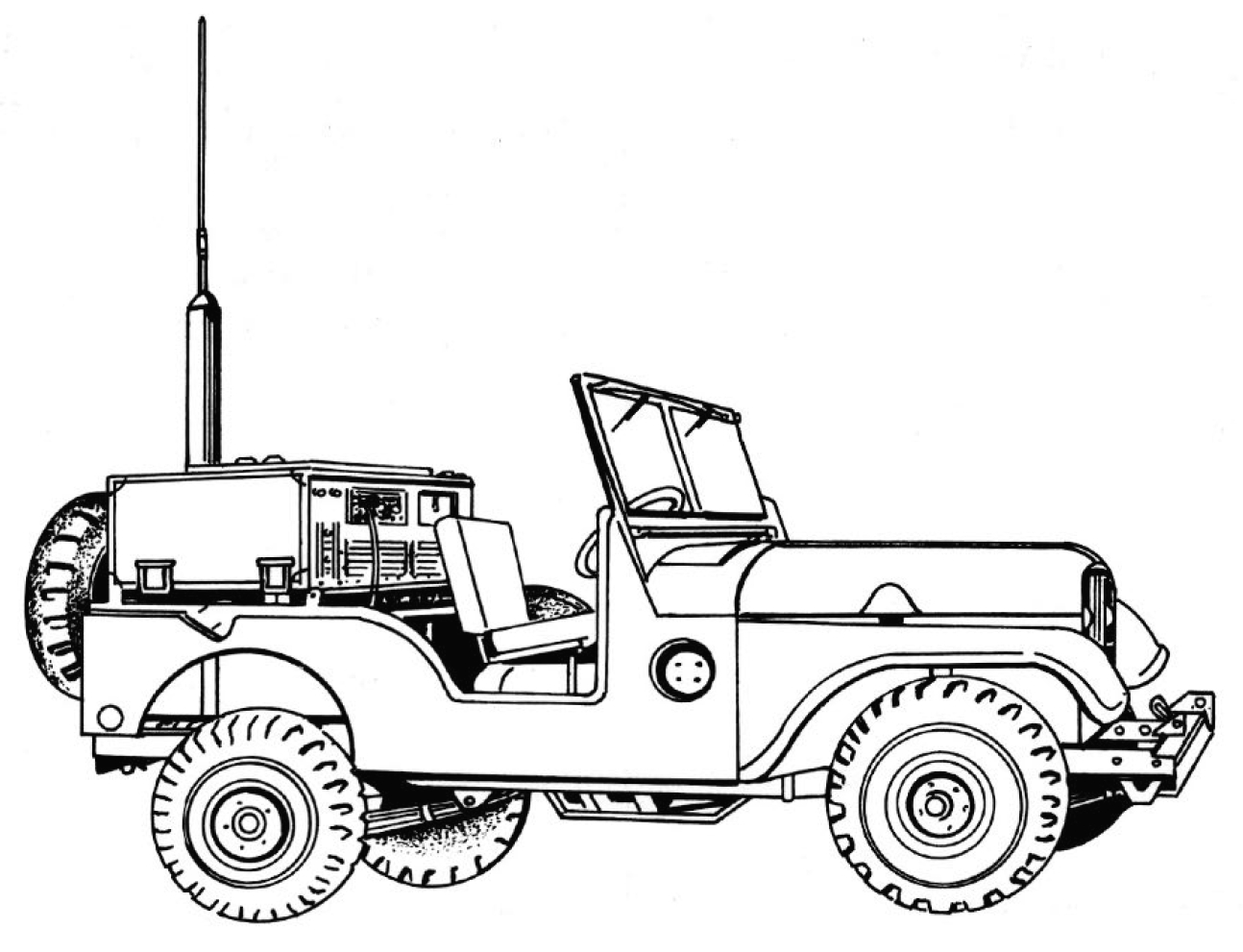

UHF AN/ARC-55		 mrc87-31.jpg (405714 bytes) Restored AN/MRC-87

AN/MSC-3 Communications Central

Includes:
  AN/MGC-1
  AN/MRC-17
  AN/MRC-25
  AN/MRT-3
  AN/MSA-1

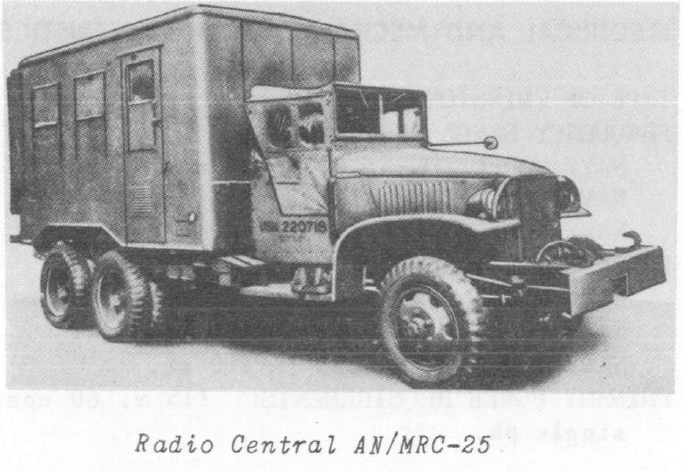

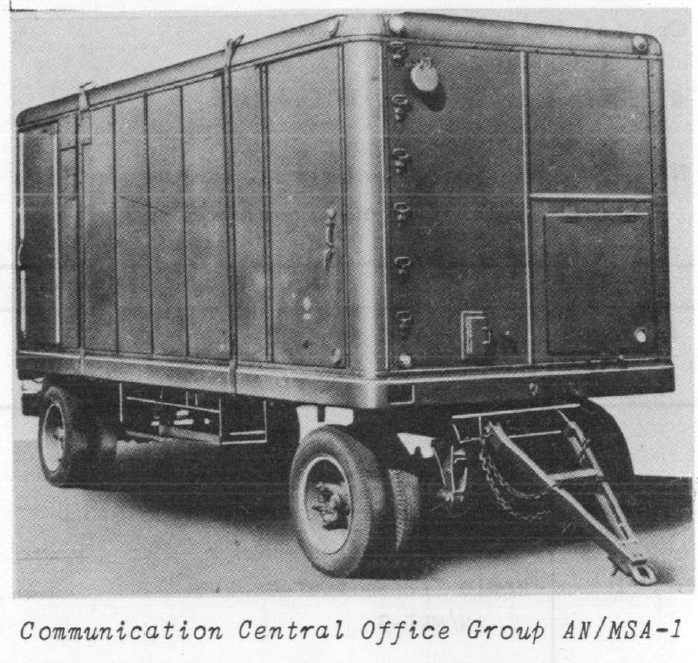

 The Communication Central AN/MSC-3 is a mobile, self contained, high and low power communication station. The transmitting and receiving equipment, when used with the associated equipment is capable of providing six high powered communication channels, operating on either voice, teletype, or continuous wave (cw). Also provided are one very high frequency (vhf) channel that can operate on voice or modulated continuous wave (mcw), and one ultra high frequency (uhf) channel that can operate on voice teletype or modulated continuous wave (mcw). The system is capable of handling long haul, ship to shore and plane to shore circuits. It is designed as a long range, ground radio communcation unit to be as mobile as possible within the limits of its application. It may be transported by rail, ship or under its own power. The AN/MSC-3 consists of Radio Central AN/MRC-25, Teletypewriter Central AN/MGC-1, Radio Transmitter Central AN/MRT-3, Radio Central AN/MRC-17 and Communication Central Office Group AN/MSA-1.

AN/TSC-15 Communications Central


AN/TSC-24 Air Transportable Communications Unit


Direction Finding

DAW

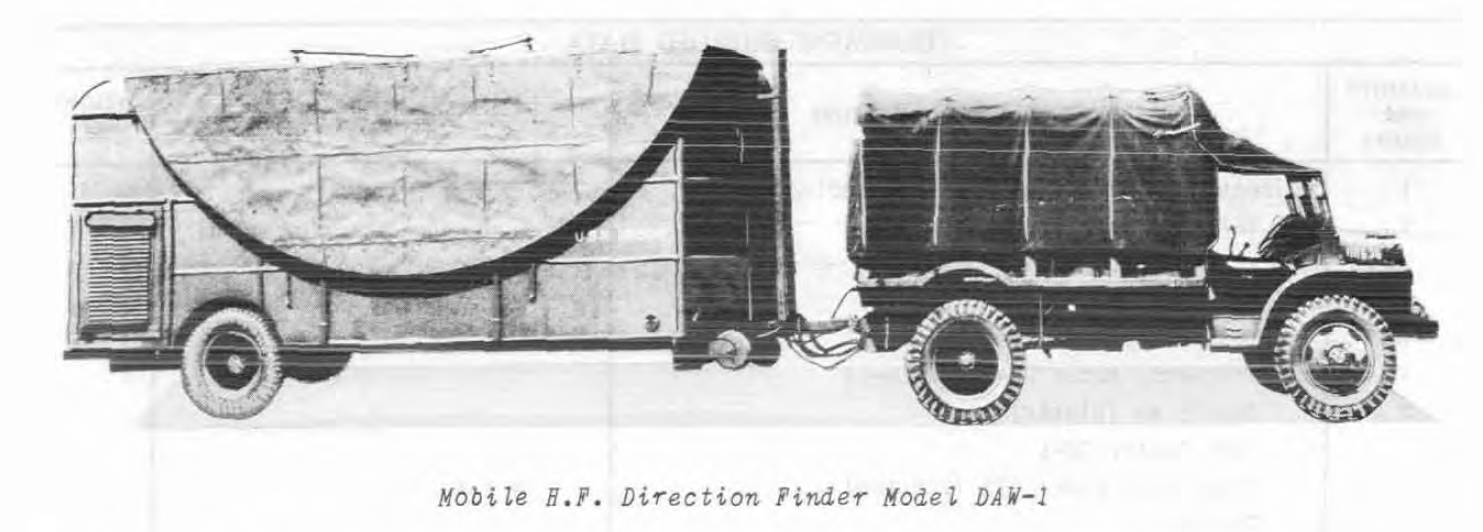

DAW-1

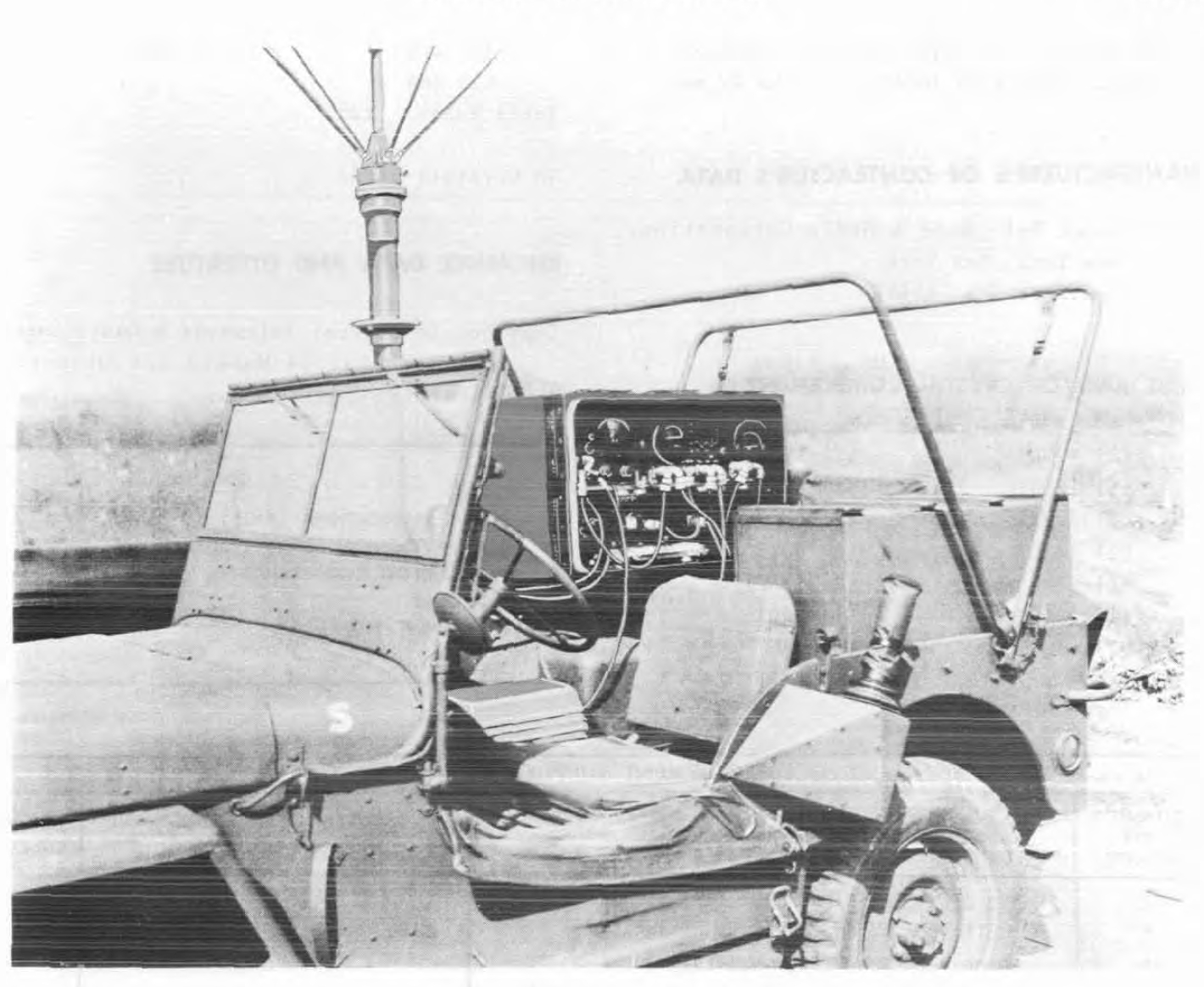

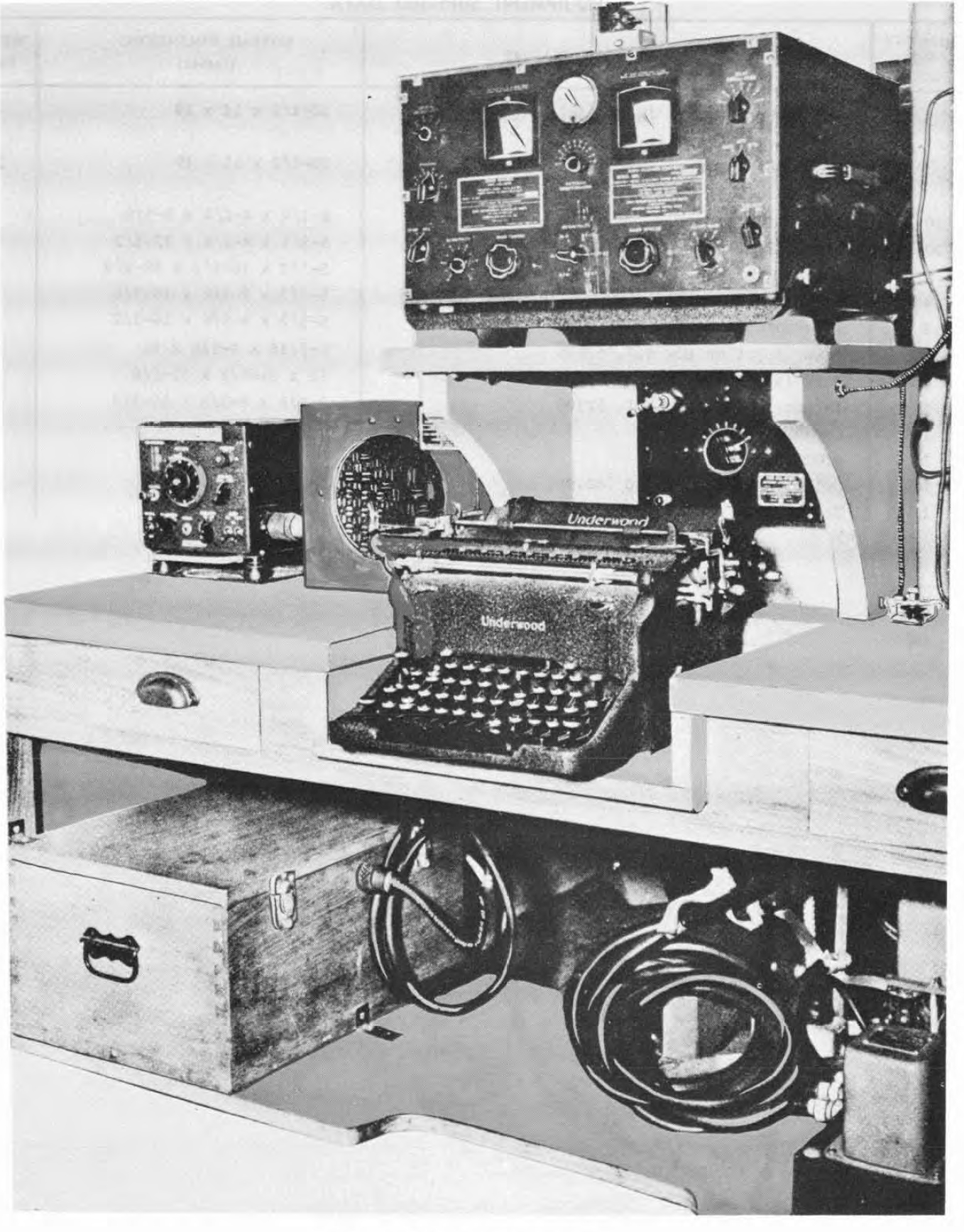

DAW-2 		daw1-01.jpg (283146 bytes)

1.5-22 mc



DAX dax-01.jpg (569788 bytes) 1.5-22 mc ==

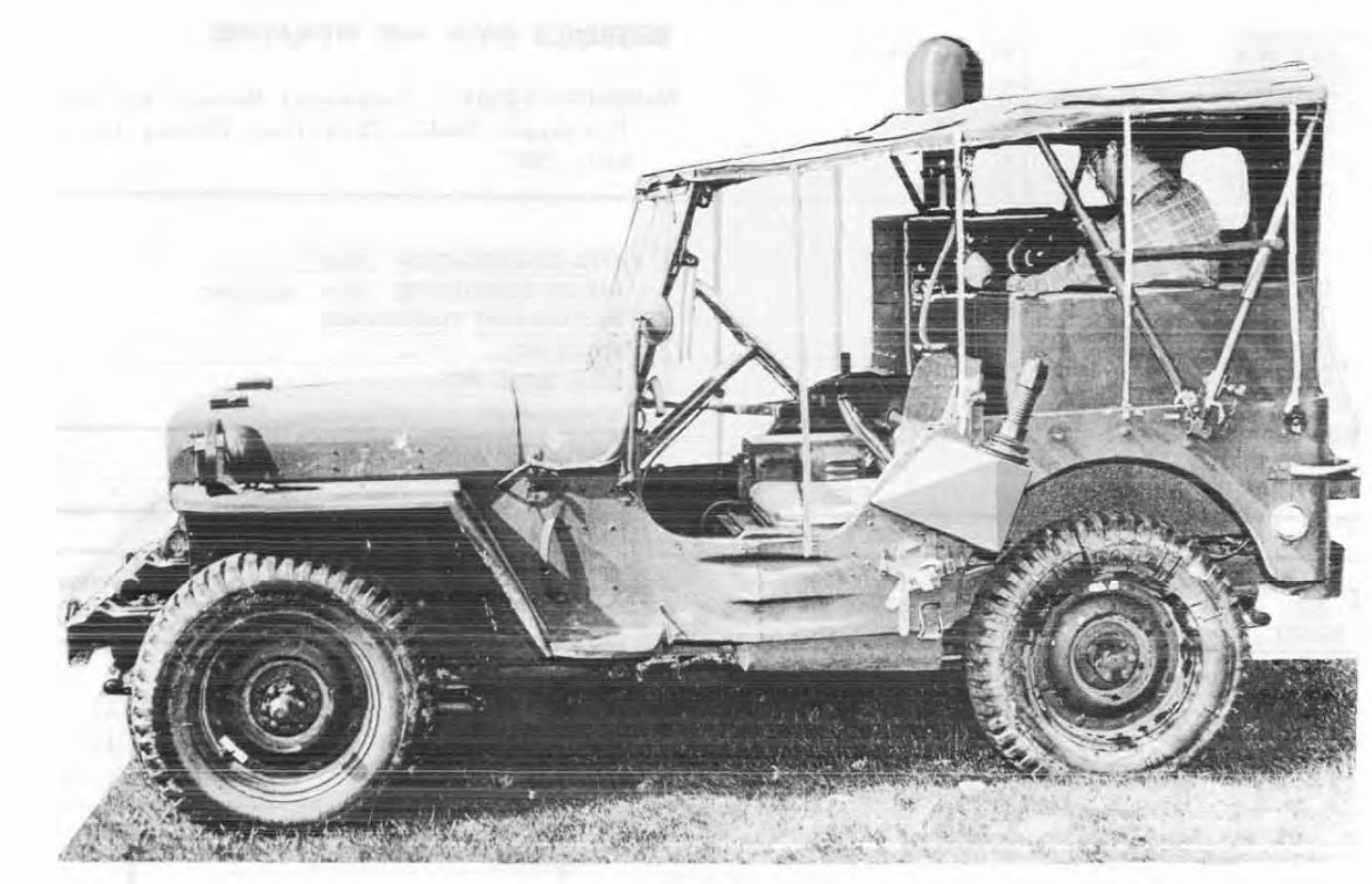

DAY



DAZ == 100-156 mc ==
